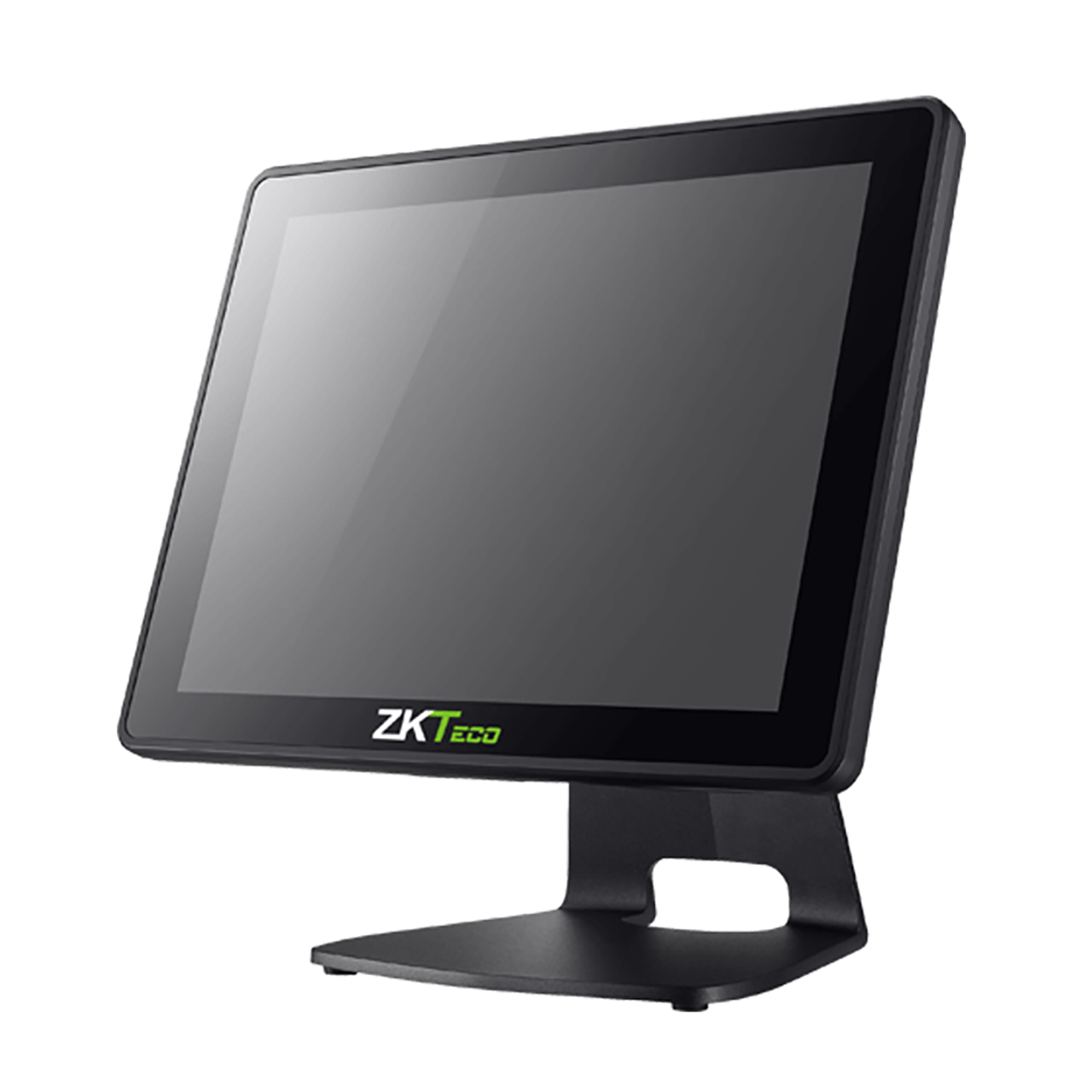

ZKTeco ZK5510
Well designed as Ultra-slim and stylish, guaranteed water and dust proof front panel protection, having iPhone touch screen with added peripherals as printer, USB Fingerprint Reader, a card reader, a cash drawer and a Barcode Scanner makes the system versatile and attractive.
Basic Specs
Model Name – ZK5510
System – POS Ready Win7 / Win 8.1 Industry / Win 10 IoT Enterprise –
Processor – Intel® Celeron J1900 Quad-Core processor (2.0 GHz) –
System Memory – One SO-DIMM socket supports DDR3L 1600 up to 8GB –
Storage – 2.5’’ SATAIII HDD × 1 –
Network – LAN × 1 (RJ45 10/100/1000 Base-T) –
Protection – IP64 on front bezel –
Dimension – 371(W)×351(H)×207(D)mm
Specifications of Display/Touch Screen
LCD Display Size – 15’’ TFT LCD
Max. Resolution – 1024×768
Brightness – 250cd/ ㎡
Support Color – 16.2M/ 262K colors
Backlight – LED
Touch Panel Type – Five-Wire Analog Resistive or Projected Capacitive
I/O Port
USB – ×4(USB2.0×3,USB3.0×1) –
Powered COM – × 2 (× 2 (D-type 9 pins powered COM with DC 5V/ 12V selection)) –
Cash Drawer Port – × 1 (12V/24V RJ11 Cash Drawer Port) –
Audio Port – 1*Line-out × 1
